TURN UP YOUR ADVENTURE

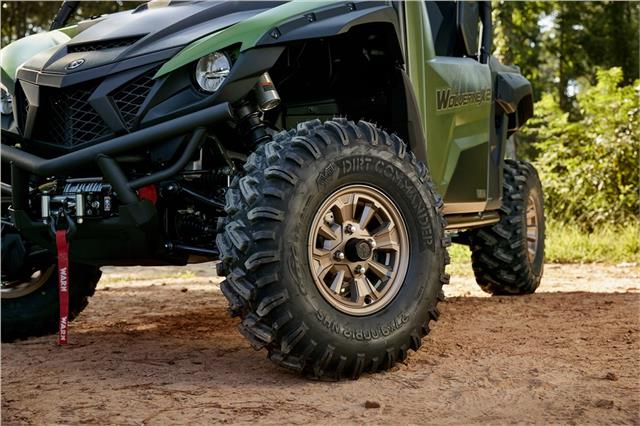

Ready for extreme adventure featuring a factory‑installed WARN® winch, Special Edition paint, color‑matched wheels, and aggressive tread pattern GBC® Dirt Commander® tires.
GALLERY
360° VIEW
0%
WOLVERINE X2 850 XT-R IN ACTION
Get an Inside Look
Yamaha WOLVERINE X2 850 XT-R
Ready for extreme adventure featuring a factory‑installed WARN® winch, Special Edition paint, color‑matched wheels, and aggressive tread pattern GBC® Dirt Commander® tires.
SPECIFICATIONS
Engine Type
847cc parallel-twin, liquid-cooled, DOHC; 8 valves
Bore x Stroke
82.0mm x 80.2mm
Compression Ratio
10.5:1
Fuel Delivery
Mikuni® fuel injection with YCC-T, dual 36mm throttle bodies
Transmission
Ultramatic V-belt with all-wheel engine braking; L, H, N, R
Final Drive
On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD
Suspension / Front

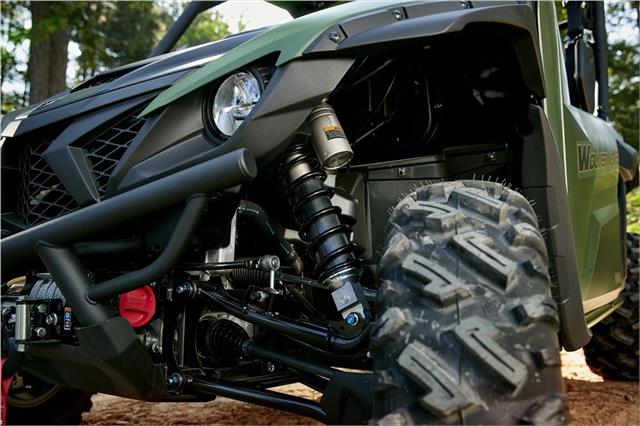

Independent double wishbone with anti-sway bar, fully adjustable KYB® piggyback shocks; 8.7-in travel
Suspension / Rear
Independent double wishbone with anti-sway bar, self-adjusting shock absorbers; 9.3-in travel
Brakes / Front
Dual hydraulic disc
Brakes / Rear
Dual hydraulic disc, shaft-mounted parking brake

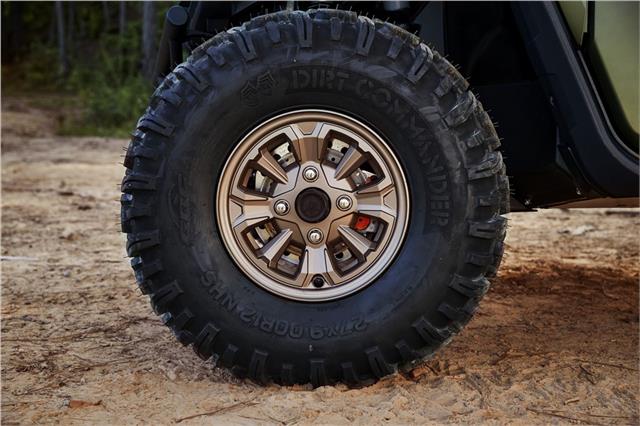

Tires / Front
AT27 x 9-12 GBC® Dirt Commander
Tires / Rear
AT27 x 11-12 GBC® Dirt Commander
L x W x H
122.0 in x 61.0 in x 77.2 in
Wheelbase
83.7 in
Turning Radius
189.0 in
Maximum Ground Clearance
10.7 in
Fuel Capacity
9.2 gal
Wet Weight
1663 lb
Bed Capacity
600 lb
Towing Capacity
2000 lb
INTRODUCING
THE ALL-NEW YAMAHA ATV
Yamaha is the leader in providing you an aspirational experience to explore new terrain, new vehicles, and exciting new destinations. Yamaha designs, engineers, manufactures and tests its ATVs and Side-by-Side vehicles in the Real World, fueling your off-road passion with superior Capability, Comfort, and Confidence!
