Description
2025 WOLVERINE RMAX2 1000 IN
ACTION
WHERE RECREATION MEETS SPORT
SPECIFICATIONS
ENGINE
Engine Type
999cc liquid cooled, 4-stroke, DOHC, 4-valve
Bore x Stroke
93.0mm×73.5mm
Compression Ratio
11.2:1
Fuel Delivery
Yamaha Fuel Injection (YFI); dual 48mm throttle bodies
Transmission
Ultramatic V-belt with all-wheel engine braking; L, H, N, R
Final Drive
On-Command 4-way locking differential; Turf Mode, 2WD, 4WD, full diff-lock 4WD
Fuel Capacity
9.2 gal
CHASSIS
Suspension / Front

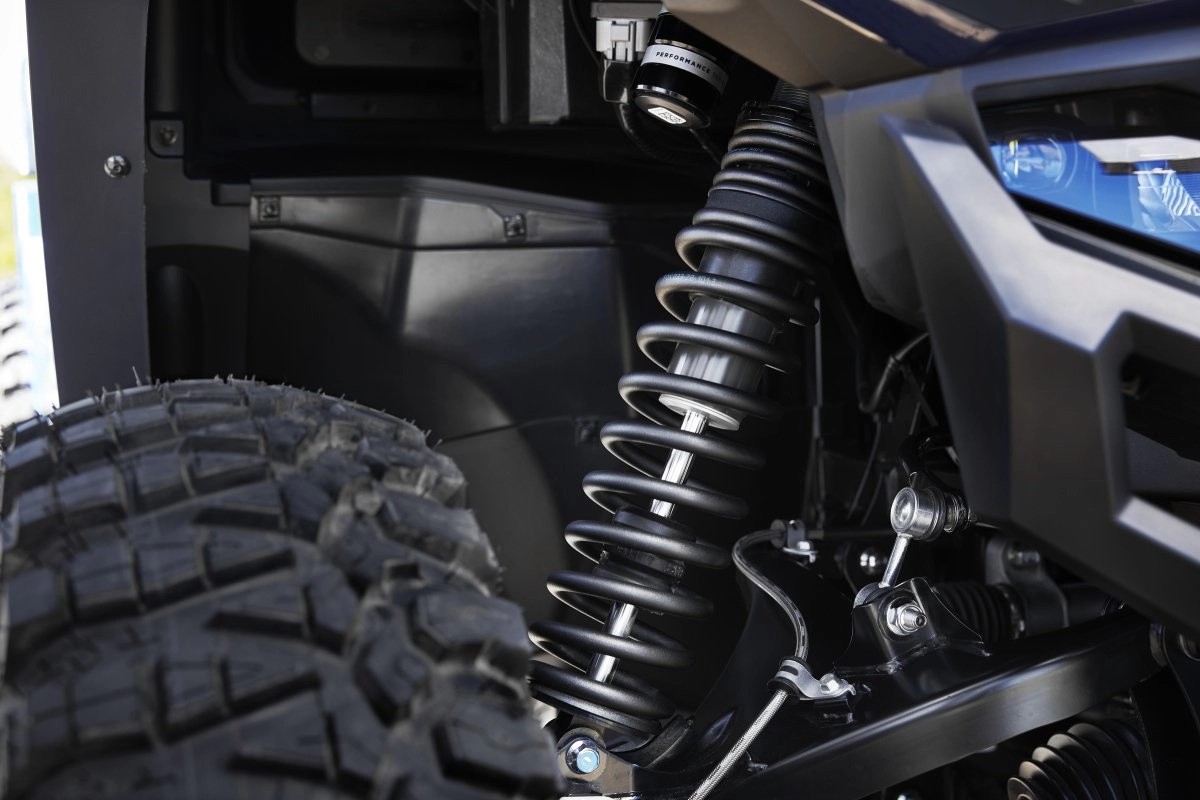

Independent double wishbone with anti-sway bar, FOX® 2.0 piggyback shocks with pre-load, high/low speed compression adjustability; 14.2-in travel
Suspension / Rear

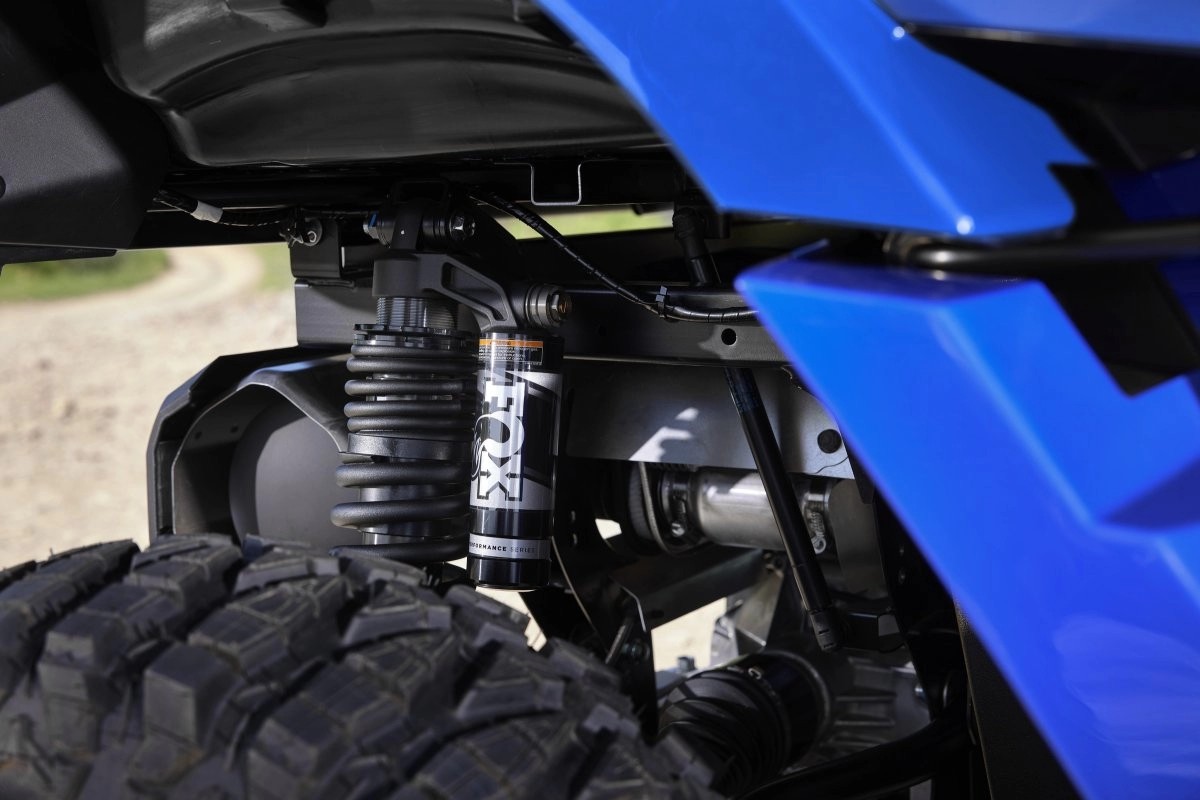

Independent double wishbone, FOX 2.0 piggyback shocks with pre-load, high/low speed compression adjustability; 16.9-in travel
Brakes / Front
Dual hydraulic disc
Brakes / Rear
Dual hydraulic disc
Tires / Front
30 x 10.00R-14 GBC Terra Master
Tires / Rear
30 x 10.00R-14 GBC Terra Master
DIMENSIONS
Stance Width
64 in
L x W x H
119.3 in x 66.1 in x 77.8 in
Wheelbase
86.7 in
Max. Ground Clearance
13.8 in
Fuel Capacity
9.2 gal
Wet Weight
1,839 lbs
