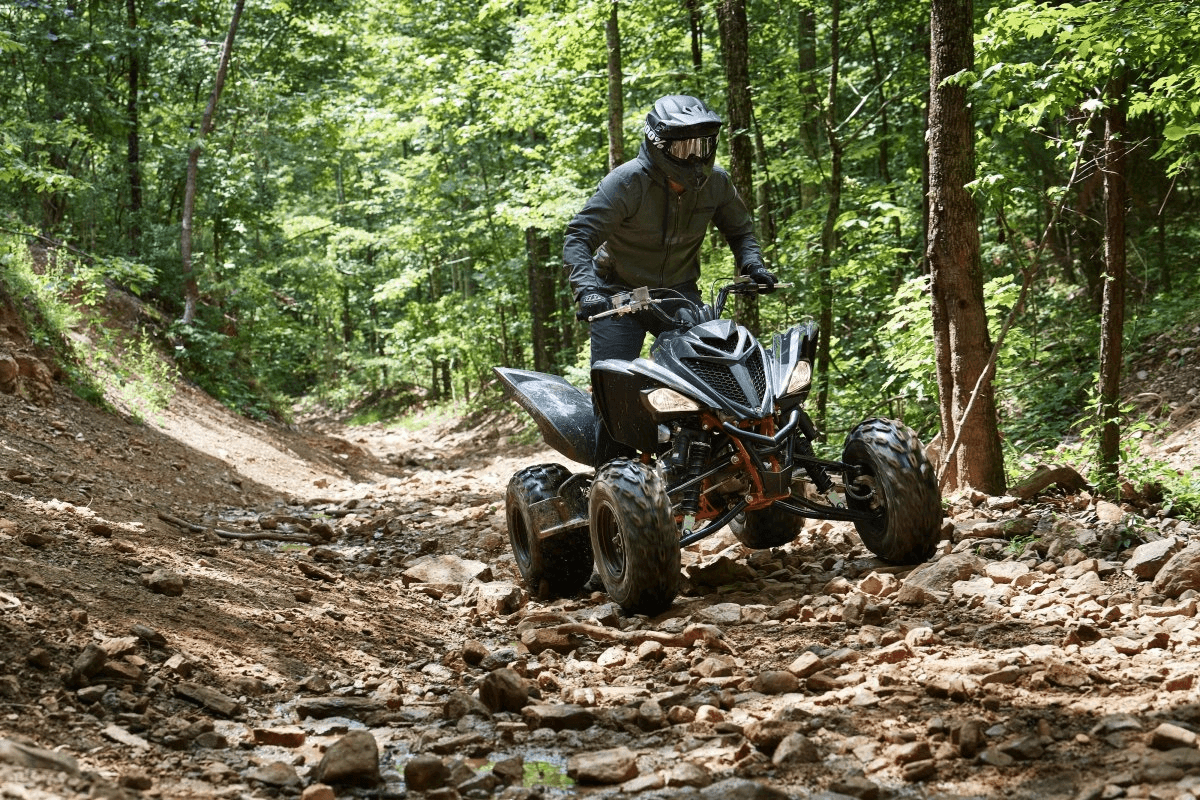

2024 RAPTOR 700R SE IN
ACTION
ALL HAIL THE KING
SPECIFICATIONS
ENGINE
Engine Type
686cc liquid-cooled SOHC 4-stroke; 4 valves
Bore x Stroke
102.0mm x 84.0mm
Compression Ratio
10.0:1
Fuel Delivery
Yamaha Fuel Injection (YFI), 44mm
Transmission
5-speed w/reverse; wet multiplate clutch
Final Drive
X-ring chain; 2WD
Ignition
TCI: Transistor Controlled Ignition
Fuel Capacity
2.9 gal
CHASSIS
Suspension / Front
Independent double wishbone w/piggyback high/low-speed compression, rebound and threaded preload adjustment, 9.1-in travel
Suspension / Rear
Cast aluminum swingarm w/piggyback high/low-speed compression, rebound and threaded preload adjustment, 10.1-in travel
Brakes / Front
Dual hydraulic disc
Brakes / Rear
Hydraulic disc
Tires / Front
AT22 x 7-10 Maxxis®
Tires / Rear
AT20 x 10-9 Maxxis®
DIMENSIONS
L x W x H
72.6 in x 45.5 in x 43.9 in
Seat Height
32.7 in
Wheelbase
50.4 in
Maximum Ground Clearance
9.5 in
Fuel Capacity
2.9 gal
Wet Weight
422 lb
