THE ULTIMATE MUCKSEEKER
Special Edition color and graphics, all‑new Maxxis ‘Zilla tires, 14″ cast aluminum wheels and superior overall rec utility performance help the new Grizzly EPS SE conquer even the toughest terrain.
GALLERY
GRIZZLY EPS SE IN ACTION
Get an Inside Look

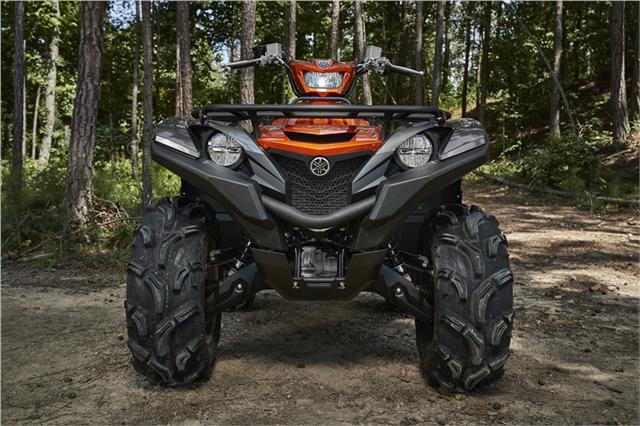

Yamaha GRIZZLY EPS SE
The Special Edition Grizzly® further enhances rugged terrain capability and confidence with Maxxis® 'Zilla tires, 14‑inch aluminum wheels and high quality painted bodywork.
SPECIFICATIONS
Engine Type
686cc liquid-cooled SOHC 4-stroke
Bore x Stroke
102.0mm x 84.0mm
Compression Ratio
10.0:1
Fuel Delivery
Yamaha Fuel Injection (YFI), 44mm
Transmission
Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P
Final Drive
On-Command 3-way locking differential; 2WD, 4WD, locked 4WD; shaft
Suspension / Front
Independent double wishbone; 5-way preload adjustment, 7.6-in travel
Suspension / Rear
Independent double wishbone with anti-sway bar; 5-way preload adjustment, 9.1-in travel
Brakes / Front
Dual hydraulic disc
Brakes / Rear
Dual hydraulic disc
Tires / Front
AT27 x 10-14 Maxxis® Zilla® MU01
Tires / Rear
AT27 x 10-14 Maxxis® Zilla® MU01
L x W x H
81.5 in x 49.2 in x 50.0 in
Seat Height
36.6 in
Wheelbase
49.2 in
Turning Radius
146.0 in
Maximum Ground Clearance
11.8 in
Fuel Capacity
4.8 gal
Wet Weight***
780 lb
Rack Capacity
110 lb (front) / 198 lb (rear)
Towing Capacity
1322 lb
INTRODUCING
THE ALL-NEW YAMAHA ATV
Yamaha is the leader in providing you an aspirational experience to explore new terrain, new vehicles, and exciting new destinations. Yamaha designs, engineers, manufactures and tests its ATVs and Side-by-Side vehicles in the Real World, fueling your off-road passion with superior Capability, Comfort, and Confidence!
