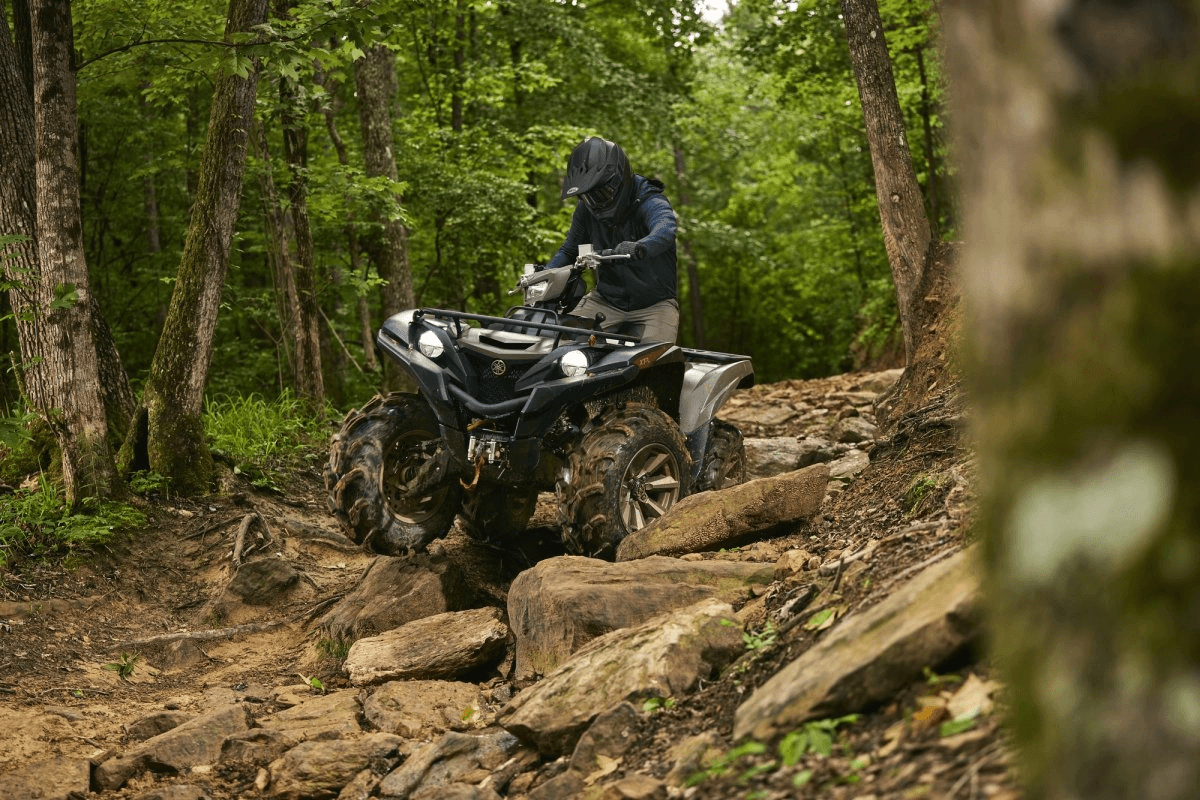

2024 GRIZZLY EPS XT-R IN
ACTION
ADVENTURE READY EXPLORER
SPECIFICATIONS
ENGINE
Engine Type
686cc liquid-cooled SOHC 4-stroke
Bore x Stroke
102.0mm x 84.0mm
Compression Ratio
10.0:1
Fuel Delivery
Yamaha Fuel Injection (YFI), 44mm
Transmission
Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P
Final Drive
On-Command 3-way locking differential; 2WD, 4WD, locked 4WD; shaft
Fuel Capacity
4.8 gal
CHASSIS
Suspension / Front
Independent double wishbone; 5-way preload adjustment, 7.6-in travel
Suspension / Rear
Independent double wishbone with anti-sway bar; 5-way preload adjustment, 9.1-in travel
Brakes / Front
Dual hydraulic disc
Brakes / Rear
Dual hydraulic disc
Tires / Front
AT27 x 10-14 Maxxis® ‘Zilla MU01
Tires / Rear
AT27 x 10-14 Maxxis® ‘Zilla MU01
DIMENSIONS
L x W x H
81.5 in x 49.2 in x 50.0 in
Seat Height
36.6 in
Wheelbase
49.2 in
Fuel Capacity
4.8 gal
Wet Weight
783 lb
